Canon 35mm FD-X (Minolta A/F) Single Lens

Price

£13,150

Availability

Available Now

Enquire Now

PRODUCT AVAILABLE NOW ENQUIRY

Canon 35mm FD-X (Minolta A/F) Single Lens

Your Location

I am interested in purchasing the above product

By submitting this form you agree to our privacy policy.

Cancel

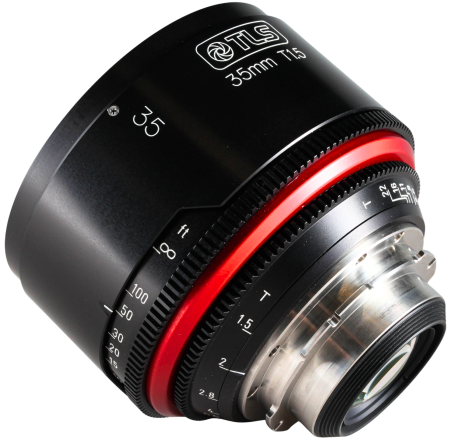

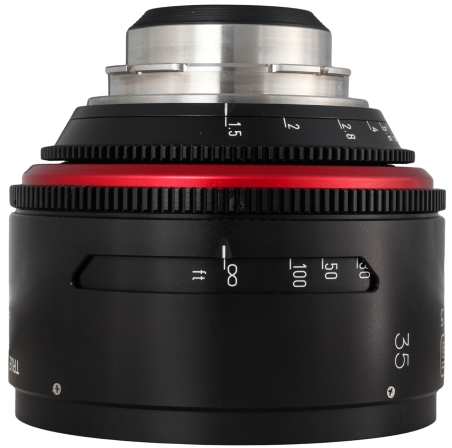

Here is a single TLS rehoused lens for sale Canon 35mm FD-X (Minolta A/F).

Mount: PL

T-Stop: 1.5

Min. Object Distance typ: 12"

Front Diameter: 110mm

Total Length: 90mm / 3 1/2"

Weight: 1.3kg / 2lb 14oz

Click here for Warranty Information

The 35mm T1.5 FD-X lens has been introduced into the TLS range of Canon FD lenses. Although not originally a Canon FD lens, this lens matches remarkably well with the rest of the set. As the fastest 35mm in the FD range is an f2, resulting in a T2.1 rehoused lens, there is need for a faster 35mm for the set to be more consistent.

After hours of research and working closely with our trusted industry experts, we settled on the Minolta 35mm f1.4 as the suitable donor lens for this project. The lens goes through the same rehousing process as the rest of the FD set, resulting in a lens that matches aesthetically, as well as optically.

The optical design of this 35mm is more complicated than most of the FD range of lenses. The optical layout consists of a fixed front group with two floating groups internally. The two moving groups inside move at different rates in relation to each other. Being able to utilise our non-linear cam system on this lens was challenging, but ultimately rewarding. This makes the lens fit in with the 'feel' of the rest of the FD range, optically, mechanically and when racking focus.

Focal Range (mm)	Canon 35mm FD-X (Minolta)
Mount	PL
T-Stop	1.5
Min. Object Distance typ. (inches)	12"
Ø Image Circle Across T-stop	T1.5	T8	T22
Ø Image Circle - Close Focus (mm)	60+	57	54
Ø Image Circle - Infinity (mm)	57	57	54
Front Diameter (mm)	110
Total Length* (inches)	3 1/2"
Total Length* (mm)	90
Weight** (kg)	1.3
Weight** (lbs)	2lb 14oz
