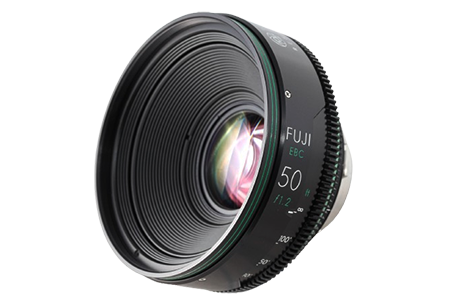

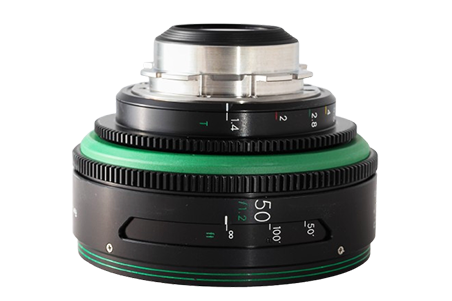

50mm Fuji EBC

Mount: PL
T -Stop: T1.4
Min. Object Distance typ.: 16"
Ø Image Circle - Close focus: 54mm
Ø Image Circle - Infinity: 51mm
Front Diameter: 110mm
Total length: 70mm
Weight: 0.93kg

Legacy and Optical Character

The Fuji EBC (Electron Beam Coated) lenses were originally introduced in 1971. They were a groundbreaking series of full-frame SLR lenses, known for their fast apertures. They offer excellent low-light performance and deliver a naturally shallow depth of field. The lenses exhibit gentle softening toward the corners and produce striking, cinematic flares—characteristics highly sought after by filmmakers in search of a vintage aesthetic.

Fuji’s multi-coating process, pioneering for its time, allowed these lenses to manage light more effectively than most optics from the same era. Remarkably, a similar process is still used on today on Fuji’s more advanced optical designs.

Rehousing and Mechanical Excellence

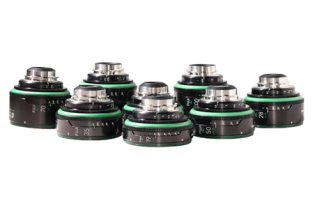

Each lens in this rehoused series has been meticulously re-engineered by TLS (True Lens Services) to meet modern cinema standards. The housings are crafted to TLS’s gold standard with each focal length including those with floating elements on a variable cam system, this not only maintains the maximum optical performance of the lens, but it also ensures a consistent mechanical feel across the entire set—an essential feature for focus pullers.

Lens Design

Aesthetically, the rehoused lenses honour their vintage origins. Design elements include coloured iris markings and a distinctive accent hue, maintaining a visual connection to the original optics while presenting a polished, contemporary finish.

Focal Range & Improved Close Focus Capability

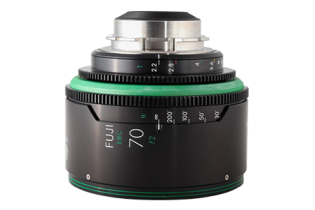

There was no suitable EBC lens between 50-100mm, after looking at different options we chose to use the 50mm f1.4 EBC along with specific optics to create a 70mm T2 that fits perfectly into the set. The whole set has greatly improved MOD (minimum object distance), with the 70mm reaching a very impressive close focus of 18”.

Key Features

Key Features - 1. Fast apertures and full-frame coverage for exceptional low-light performance Key Features - 12.Advanced multi-coating for better light handling Key Features - 3. Soft corner rendering for a distinctive look Key Features - 4. A specially developed 70mm lens to bridge the 50–100mm gap Key Features - 5.Improved Close focus for greater creative control Key Features - 6. 16 blades iris delivers stunning bokeh

50mm Fuji EBC Specification

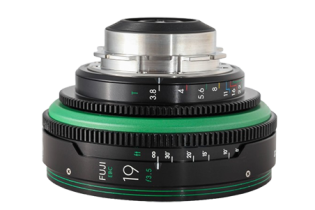

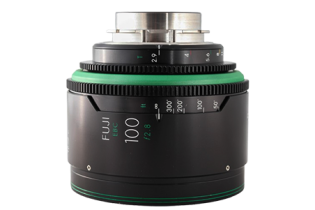

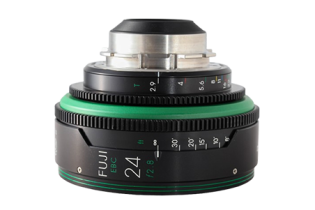

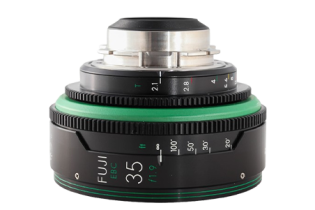

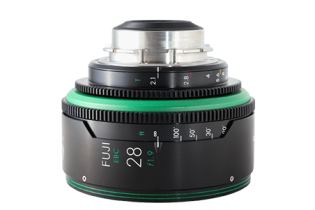

Focal Length (mm)	19			24			28			35			50			70			100			135
Mount	PL			PL			PL			PL			PL			PL			PL			PL
T-Stop	3.8			2.9			2.1			2.1			1.4			2.2			2.9			2.7
Min. Object Distance typ. (ft)	8"			8"			12"			12"			16"			18"			2'2"			3'6"
Ø Image Circle Across T-stop	T3.8	T8	T22	T2.9	T8	T22	T2.1	T8	T22	T2.1	T8	T22	T1.4	T8	T22	T2.2	T8	T22	T2.9	T8	T22	T2.7	T8	T22
Ø Image Circle - Close Focus (mm)	50	50	48	60+	60+	59	51	51	50	60+	60+	60+	54	54	53	60+	55	53	60+	60+	60+	60+	60+	60+
Ø Image Circle - Infinity (mm)	46	46	43	52	52	50	50	50	48	57	57	57	51	51	49	57	55	48	60+	60+	60+	60+	60+	60+
Front Diameter (mm)	110			110			110			110			110			110			110			110
Total Length (mm)*	60			70			70			65			70			90			95			100
Total Length (inches)*	2.36			2.76			2.76			2.56			2.76			3.54			3.74			5.31
Weight** (kg)	0.83			0.91			TBC			0.94			0.93			1.27			1.20			1.42
Weight** (lbs)	1.82			2.01			TBC			2.07			2.05			2.80			2.64			3.13

*Total approximate length is measured from the flange to the front of lens
** Weight subject to change with further developments
TBC - To be confirmed
