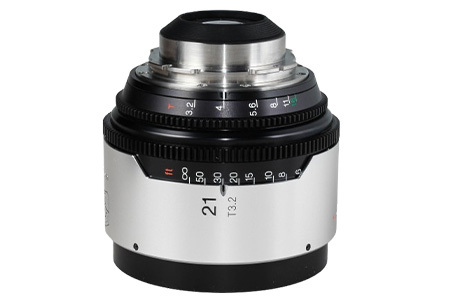

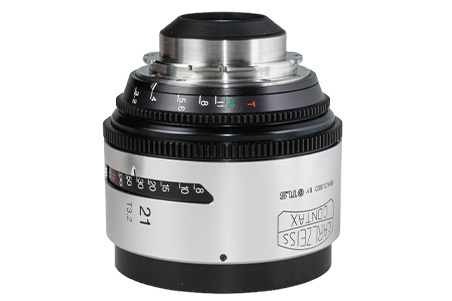

21mm Zeiss Contax f2.8

  • Mount: PL
  • T -Stop: 3.2
  • Min. Object Distance typ.: 9"
  • Front Diameter: 95mm
  • Total lengths: 91mm
  • Weight: 1.29kg

Legendary character, beautifully made

The Zeiss Contax lenses were originally released in the seventies, around the same era as the legendary Zeiss Super Speeds. The Contax lenses have the renowned T* coatings and a wonderful optical design. Originally designed for the stills photography world, these lenses have great coverage coupled with an organic character that differentiates them from any modern optics. They’re often dubbed the ‘full frame super speeds’ and we can see why they’ve gained this reputation.

The TLS Rehousing

TLS have worked their magic and converted them to a full cine lens.

These beautiful optics are now hand crafted into a robust rehousing offering:-

  • 300 degrees of focus rotation on a non-linear cam;
  • replacement circular iris for perfect bokeh, no matter what stop you’re shooting;
    (replacement ‘ninja star’ iris available for the AE variants)
  • focus and iris gears in the same position in relation to the camera;
  • repeatable, individually marked focus scales;
  • 95mm fixed front with no telescoping
  • optically aligned to render their true character.

These premium, hand-crafted lenses are designed to elevate your storytelling with unparalleled quality and style. Bring a piece of history to your next production and experience the magic of the Zeiss Contax rehoused lenses!

Key Features

300 degrees of focus rotation on a non-linear cam for precise focus control Replacement circular iris for perfect bokeh, no matter what stop you’re shooting Repeatable, individually marked focus scales, ensure accurate, consistent focus pulling 95mm fixed front with no telescoping to keep compact formOptically aligned to preserve the lens’s true character while enhancing performance

*Replacement ‘ninja star’ iris available for the AE variants

21mm Zeiss Contax f2.8 Specification

Zeiss Contax 15mm F3.5 18mm F4.0 21mm F2.8 25mm F2.8 28mm F2.0 35mm F1.4 45mm F2.8 50mm F1.4 60mm F2.8 85mm F1.4 100mm F2.0 135mm 150mm F2.0 180mm F2.8
Mount PL PL PL PL PL PL PL PL PL PL PL PL PL PL
T-Stop TBC 4.4 3.2 3 2.2 1.6 TBC 1.6 TBC 1.6 2.1 2.1 TBC TBC
Min. Object Distance typ. 7" 9" 9" 10" 10" 12" 16" 15" TBC 2'2" 2' 3'3" TBC TBC
Ø Image Circle Across T-stop TBCT8T16 T4.4T8T16 T3.2T8T16 T3T8T16 T2.2T8T16 T1.6T8T16 TBCT8T16 T3.2T8T16 TBCT8T16 T1.6T8T16 T2.1T8T16 T2.1T8T16 TBCT8T16 TBCT8T16
Ø Image Circle - Close Focus (mm) TBCTBCTBC 494949 525252 565655 60+60+60+ 60+60+60+ TBCTBCTBC 60+60+60+ TBCTBCTBC 60+60+60+ 60+60+60+ 60+60+60+ TBCTBCTBC TBCTBCTBC
Ø Image Circle - Infinity (mm) TBCTBCTBC 454545 505050 525250 555555 575757 TBCTBCTBC 555555 TBCTBCTBC 60+60+60+ 60+60+60+ 60+60+60+ TBCTBCTBC TBCTBCTBC
Front Diameter (mm) 134 95 95 95 95 95 TBC 95 TBC 95 95 95 TBC TBC
Total Length (mm)* 89 56 91 65 75 85 60 65 91 85 109 123 TBC 149
Total Length (inches)* 3.51 2.22 3.58 2.57 2.96 3.36 2.37 2.57 3.59 3.36 4.30 4.85 TBC 5.88
Weight* (kg)** TBC TBC 1.29 0.93 1.16 1.19 60 0.87 TBC 1.24 1.41 1.64 TBC TBC
Weight* (lbs)** TBC TBC 2.12 2.11 2.12 2.64 TBC 1.93 TBC 2.74 3.10 3.61 TBC TBC


*Total approximate length is measured from the flange to the front of lens
** Weight subject to change with further developments
TBC - To be confirmed
